Merlin elite Pro is a high performance desktop video magnifier (CCTV), featuring a Full HD 1080p camera and Full Page Text-to-Speech (OCR).
The high definition camera displays crystal clear images in vibrant colour and contrast while its high resolution LCD and large field of view produce maximum detail on a clear bold display.

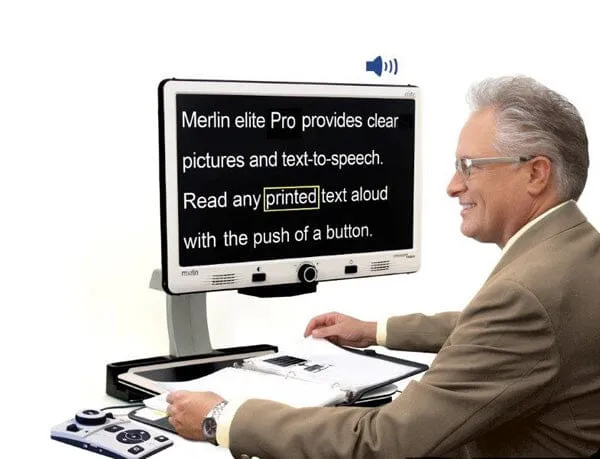

With the push of one button, Merlin elite Pro allows you to change from live image mode to full page Text-to-Speech mode to have it read your favorite article or book aloud.
A perfect solution for anybody looking for a powerful all-in-one electronic magnifier.
Features
Video Magnifier (CCTV):
- Full HD 1080p auto focus camera
- 24” high resolution HD LCD for superior image quality
- Magnification up to 70x
- 32 viewing modes to optimize contrast and brightness
- Screen easily pivots horizontally and vertically to provide the most comfortable viewing position
- Low profile XY table with a user friendly lock mechanism

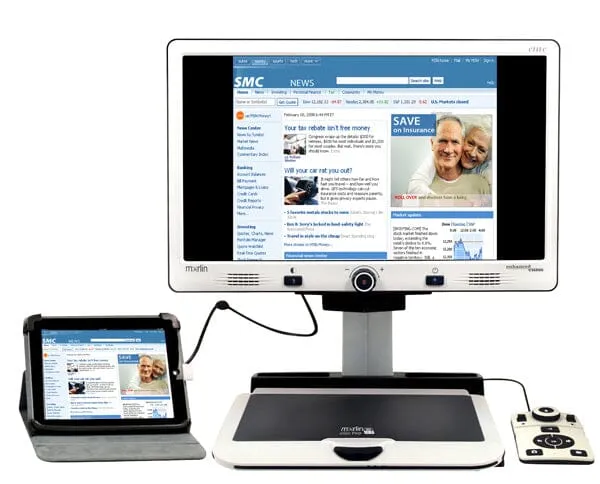

- Computer compatible – toggle between CCTV and computer, connects to tablets & iPad
Text-to-Speech (OCR):
- 13 Megapixel Camera for accurate Full Page Text-to-Speech
- 3 OCR reading formats (Full Page Text, Full Page Picture & Single Line Text) for the optimum reading experience
- Easy-to-use console with simple and advanced modes
- Multiple language recognition
- Male & Female premium voices
- Save documents, pictures or books and export files to your PC
- Setup is easy, just plug in and begin
Technical Specifications
General | |
Measures | 24” LCD - 70.5cm H X 57.8cm W x 50.8cm D (27.75” H x 22.75” W x 20” D) |
Weight | 40.1lbs (18.2 Kg) |
Camera | High Definition 1080p Full HD Camera |
Magnification Range | Normal Range: 2.4X to 41X Extended Range: 2.4x to 73x |
Power Supply | |
Input voltage/current | 120-240 VAC / 0.3-0.5A (nominal) |
Output voltage | 19 VDC |
Frequency | 50 OR 60 Hz |
Power usage | While ON 30W While in Standby Less than 5W While OFF Less than 1W |
Equipment Classification (IEC 601-1) | |
Type of Protection | Class 1 |
Degree of Protection | Type B |
Mode of Operation | Continuous |
Operating temperature range | 32-104°F (0-40°C) |
Storage/transport temperature range | 32-140°F (0-60°C) |
The file size of an OCR scan varies based on text density. 1000 full page scans at minimum can be stored on Merlin Elite Pro.
